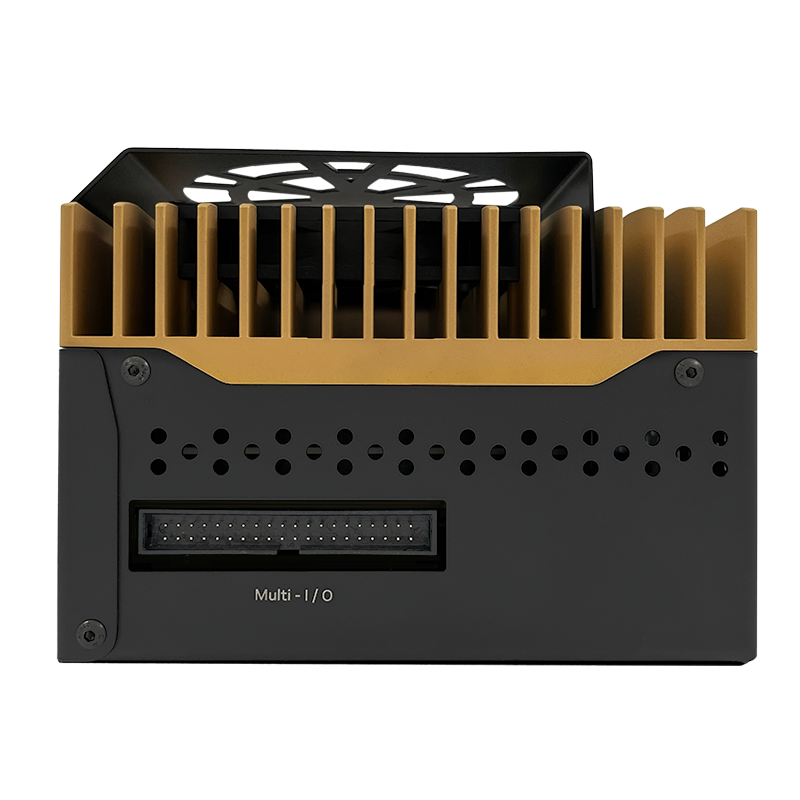

Pulsar Active AI Box 32GB - Image 3
Pulsar Active AI Box 32GB - Image 4
Pulsar Active AI Box 32GB - Image 5

Pulsar Active AI Box 32GB

The Pulsar Active AI Box 32GB delivers robust edge AI performance with an NVIDIA Jetson AGX Orin 32GB module (200 TOPS) and 32 GB of 256-bit LPDDR5 memory, making it ideal for advanced robotics, medical imaging, and complex industrial automation.

Key Features

✓ NVIDIA Jetson AGX Orin 32GB module (200 TOPS)
✓ 32 GB 256-bit LPDDR5 memory

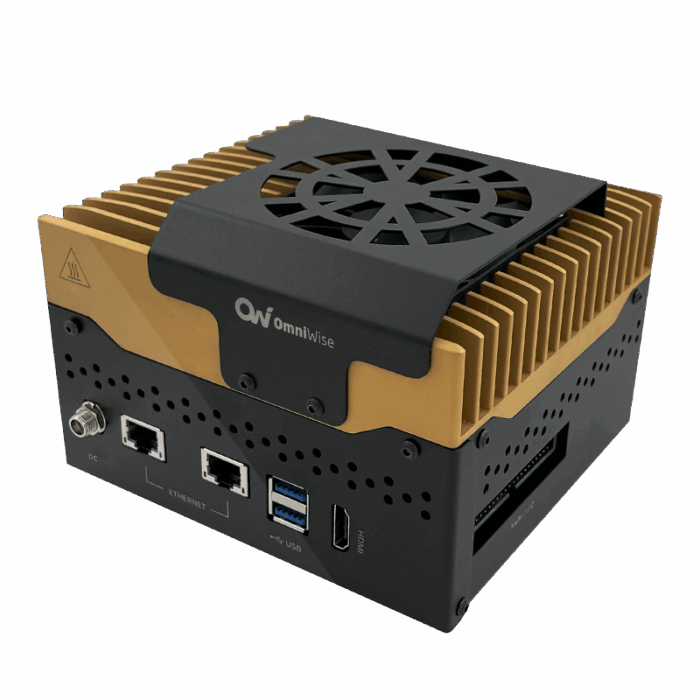

✓ Active cooling (fan + heatsink)
✓ 2× USB 3.2 Type-A & 2× USB 2.0 Type-A
✓ 1× USB 2.0 Micro-B (recovery)

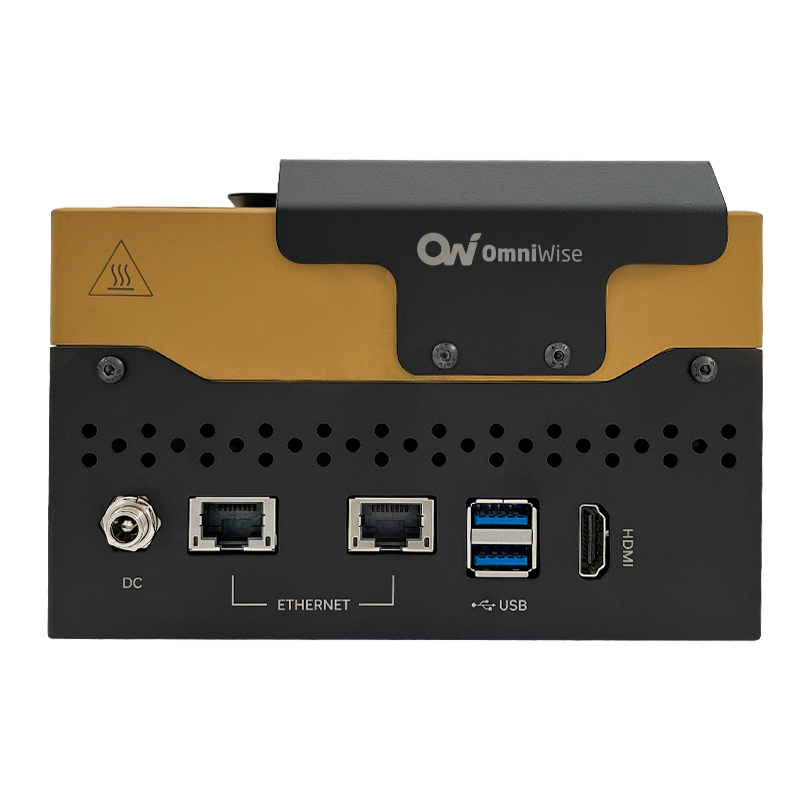

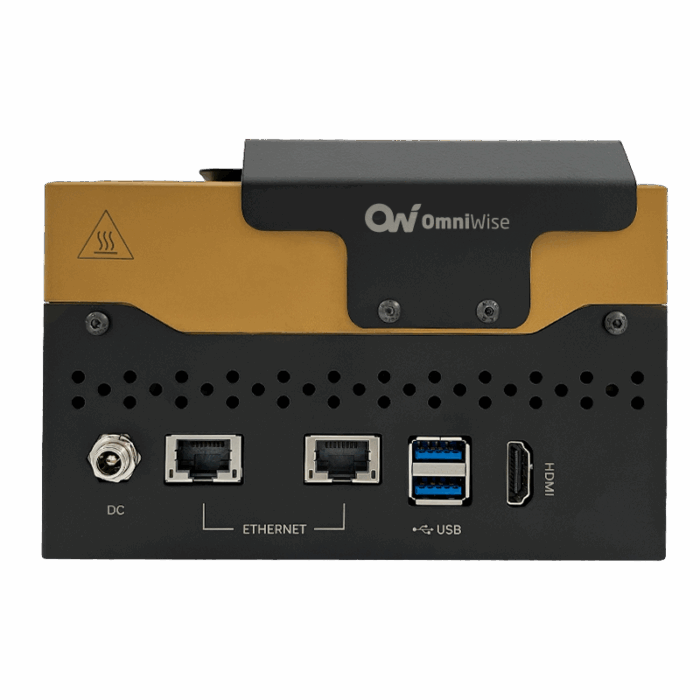

✓ 1× GbE RJ45 & 1× 10 GbE RJ45
✓ 1× HDMI 2.0 (3840×2160 @ 60 Hz)
✓ 1× UART, 1× SPI, 1× CAN, 2× I2C, 1× I2S, 5× GPIO
✓ Power input range 9–36 V DC
✓ Operating temperature range –25 °C to +85 °C

The Pulsar Active AI Box 32GB provides the processing power and memory to run demanding AI models and multiple video streams in real time. Designed for applications such as intelligent robotic systems, medical image analysis, and automated production lines, this actively cooled enclosure combines a powerful Ampere GPU and an 8-core Cortex-A78AE CPU with 32 GB of LPDDR5 memory to deliver consistent performance under all conditions.

Key Features

  • NVIDIA Jetson AGX Orin 32GB module (200 TOPS)
  • 32 GB 256-bit LPDDR5 memory
  • Active cooling (fan + heatsink)
  • 2× USB 3.2 Type-A, 2× USB 2.0 Type-A & 1× USB 2.0 Micro-B (recovery)
  • 1× GbE RJ45 & 1× 10 GbE RJ45
  • 1× HDMI 2.0 (4K @ 60 Hz)

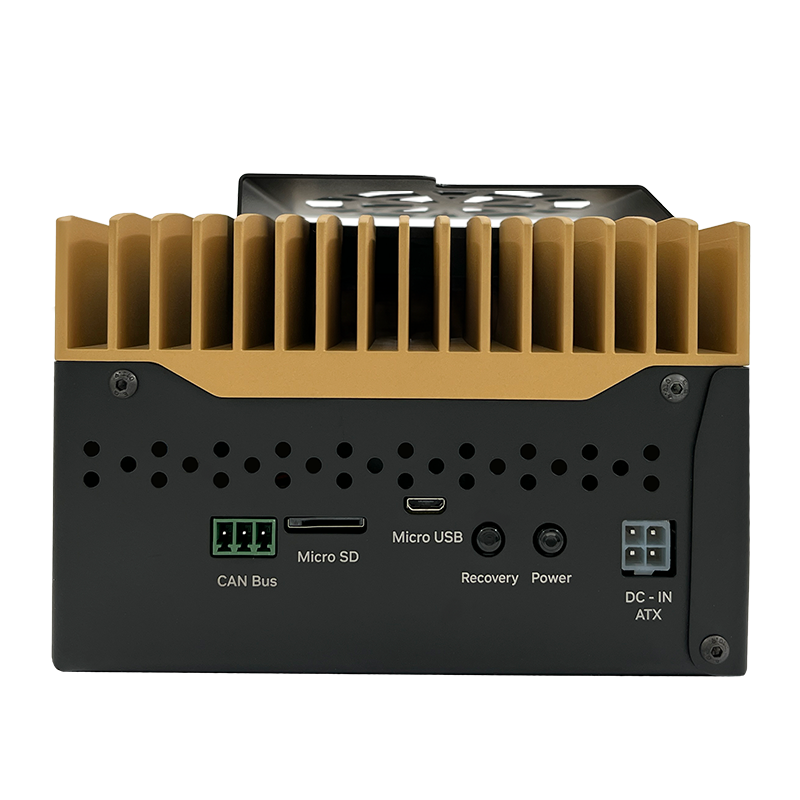

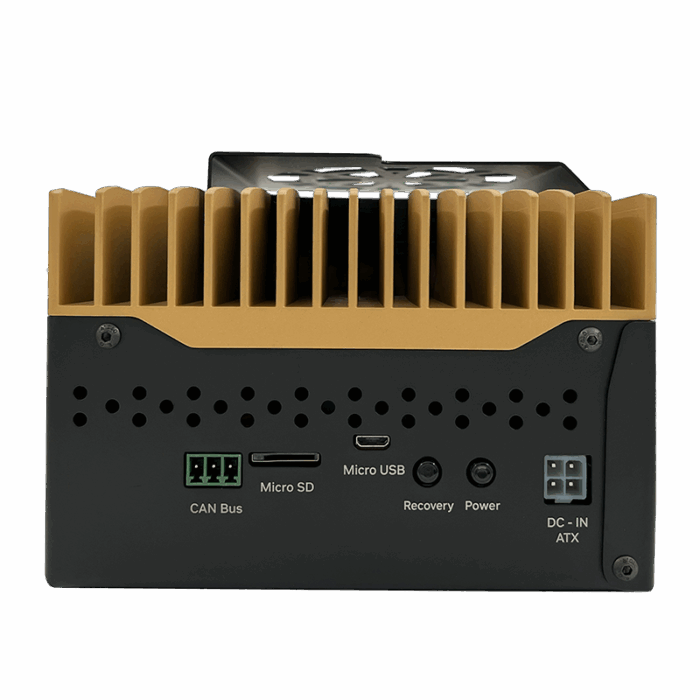

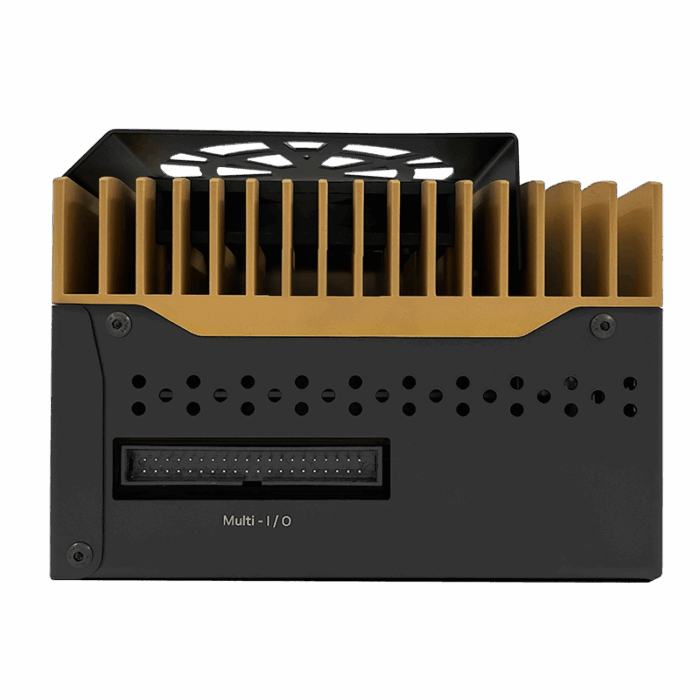

  • 1× UART, 1× SPI, 1× CAN, 2× I2C, 1× I2S, 5× GPIO

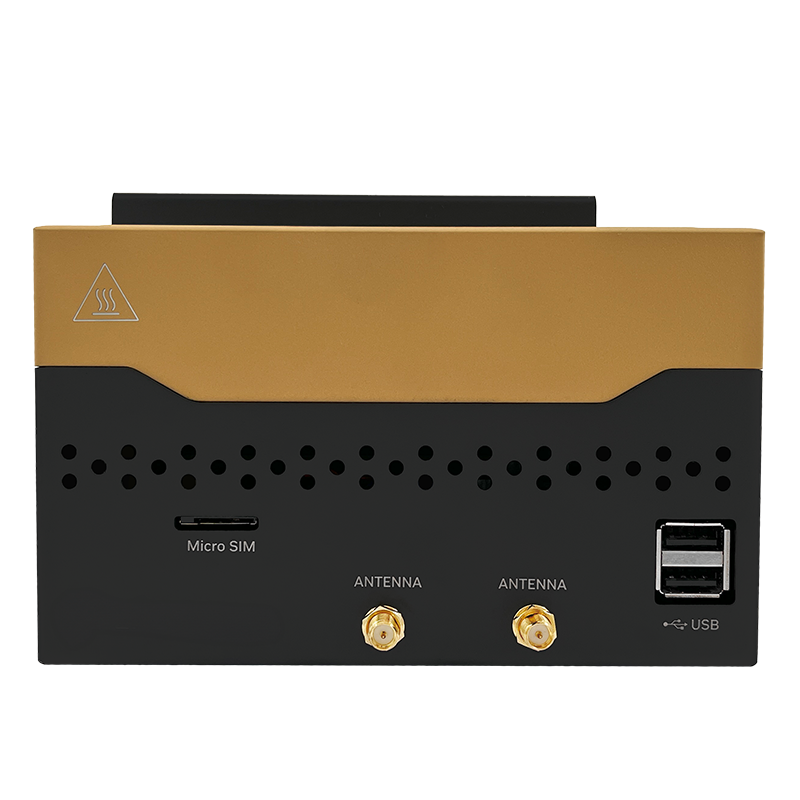

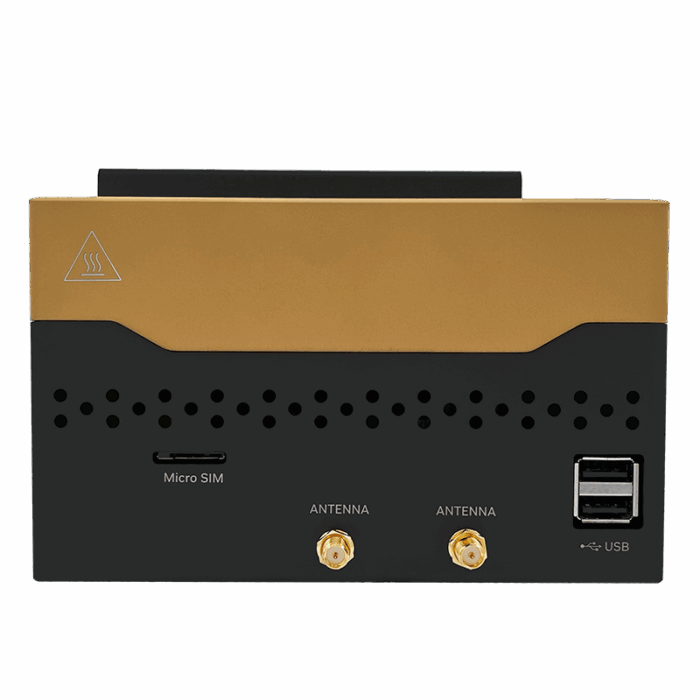

  • 1× Micro SIM & 1× M.2 Key-E for wireless modules
  • 1× microSD slot & 1× M.2 M Key SSD
  • DL accelerators: 2× NVDLA v2.0
  • Power input range 12–54 V DC | Power consumption 15–40 W
  • Video encode/decode: up to 4K and 8K streams
  • Dimensions 150 × 137.5 × 102.5 mm, weight 2080 g (including antenna)
  • Operating temperature range –25 °C to +85 °C
